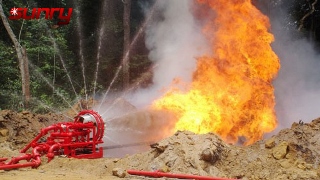

Crude Oil Burner

The crude oil burner comprises a single-head and 2-4 nozzles, used for offshore and onshore exploration, well testing and cleanup. It provides an efficient and cost-effective alternative to oil storage.

The oil is atomized by compressed air and cyclonic force, this design makes oil to reach complete and smokeless combustion, and low heat radiation. The burner is equipped with one or two pilots, a built-in water screen to reduce heat radiation.

Crude oil burner control manifold is used to tune the flowrate of crude oil, gas and air into smokeless combustion. it also mixes gas and air, or gas and oil in advance.

It has been proved that this crude oil burner is highly efficient with all types of oil, particularly heavy and waxy oils.

    Application
  • Offshore and onshore exploration, well testing and cleanup operations
  • Operations in environmentally sensitive areas
  • Heavy and waxy oil production
    Benefits
  • Reduces environmental impact during well testing
  • Provides an efficient and costeffective alternative to oil storage
  • Accommodates low oil flow rates and adverse wind conditions
    Features
  • Fallout- and smoke-free
  • Operates efficiently with up to 25% water cut
  • Built-in shutoff valve
  • Integral design of water screens
  • Large operating range with optional multirate kit
crude oil burner
